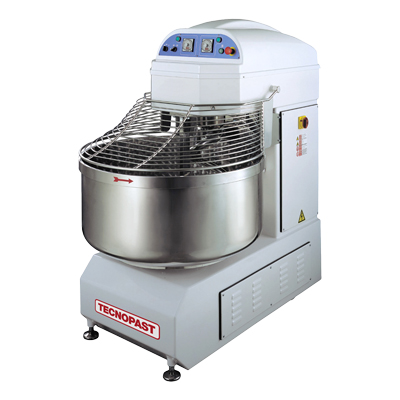

Spiral mixer with fixed bowl
Serie BS-FT
Heavy duty mixers purposely designed to meet the requirements of small and medium bakeries.
Technical charateristcs:
- Fabricated steel structure
- Spiral made of high resistance stainless steel
- Bowl and central post of 18/10 stainless steel
- Two-speed motor for the spiral with 2 timers, independent motor for the bowl
- Bowl reverse rotation in slow speed
- V-belt drive system for noiseless working
and minimum maintenance operations
- Equipped with back wheels and anti-vibration adjustable pads for easy motion and maximum stability
- 24-Volt control board
Model | BS40FT | BS60FT | BS80FT | BSA80FT | BS130FT | |
---|---|---|---|---|---|---|
Flour capacity | kg | 25 | 37 | 50 | 50 | 80 |
Dough capacity | kg | 40 | 60 | 80 | 80 | 130 |
Bowl capacity | l | 70 | 95 | 142 | 142 | 216 |
Speeds spiral | n° | 2 | 2 | 2 | 2 | 2 |
Speeds bowl | n° | 1 | 1 | 1 | 1 | 1 |
Dimensions | cm | 57×105×118 | 61×110×118 | 73×122×145 | 73×122×145 | 83×132×145 |
Weight | kg | 275 | 325 | 470 | 480 | 540 |
Power | kW | 3,25 | 3,25 | 4,95 | 4,95 | 5,75 |
Model | BSA130FT | BS160FT | BSA160FT | BS200FT | BSA200FT | |
---|---|---|---|---|---|---|
Flour capacity | kg | 80 | 100 | 100 | 125 | 125 |
Dough capacity | kg | 130 | 160 | 160 | 200 | 200 |
Bowl capacity | l | 216 | 273 | 273 | 298 | 298 |
Speeds spiral | n° | 2 | 2 | 2 | 2 | 2 |
Speeds bowl | n° | 1 | 1 | 1 | 1 | 1 |
Dimensions | cm | 83×132×145 | 93×147×160 | 93×147×160 | 93×147×160 | 93×147×160 |
Weight | kg | 550 | 780 | 830 | 800 | 860 |
Power | kW | 5,75 | 6,65 | 6,65 | 8,55 | 8,55 |

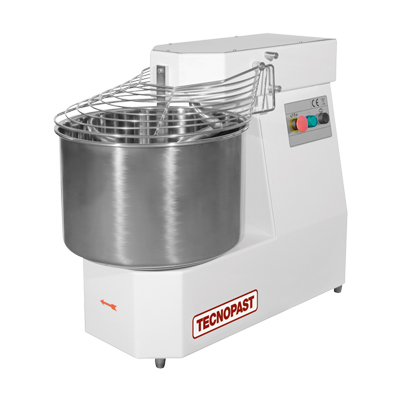

Spiral mixer for light duty
Serie BS-V
Light duty mixers purposely designed for pizza and bread production in few small batches per day.
Technical charateristcs:
- Fabricated steel structure
- Spiral made of high resistance stainless steel
- Bowl and central post of 18/10 stainless steel
- Single two-speed motor
Model | BS20V | BS30V | BS40V | BS50V | BS60V | |
---|---|---|---|---|---|---|
Bowl capacity | l | 22 | 32 | 41 | 64 | 82 |
Dough capacity | kg | 17 | 25 | 35 | 45 | 60 |
Dimensions | cm | 73×39×66 | 73×39×66 | 84×48×76 | 89×52×87 | 95×57×92 |
Speeds | nr | 2 | 2 | 2 | 2 | 2 |
Weight | kg | 69 | 73 | 118 | 148 | 158 |
Power | kW | 0,75 | 1,1 | 1,5 | 2,2 | 2,2 |

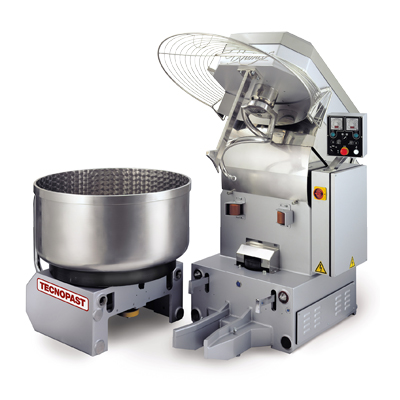

Spiral mixer with removable bowl
Serie BSE
Heavy duty mixer purposely designed to meet the requirements of medium and large bakeries..
Technical charateristcs:
- Fabricated steel structure
- Spiral made of high resistance stainless steel
- Bowl and central post of 18/10 stainless steel
- Two-speed motor for the spiral, independent motor for the bowl
- V-belt drive system for noiseless working
and minimum maintenance operations
- Removable bowl
- 24-Volt control board
- Reversal of the bowl rotation in slow speed
- Supplied with two timers which allow the automatic switching from the slow to the high speed and the stop of the machine at the end of the mixing phase
Model | BSE130TT | BSE160TT | BSE200TT | BSE250TT | |
---|---|---|---|---|---|
Flour capacity | kg | 80 | 100 | 125 | 150 |
Dough capacity | kg | 130 | 160 | 200 | 250 |
Bowl capacity | l | 216 | 273 | 326 | 368 |
Speeds spiral | n° | 2 | 2 | 2 | 2 |
Speeds bowl | n° | 1 | 1 | 1 | 1 |
Dimensions | cm | 175×103×135 | 185×108×135 | 189×112×137 | 195×115×137 |
Weight | kg | 894 | 940 | 1200 | 1250 |
Power | kW | 7,2 | 7,75 | 9,7 | 12,2 |

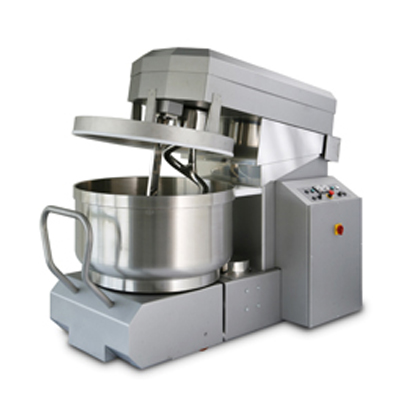

Spiral mixer with removable bowl
Serie BSE 300-400TT
Heavy duty mixer purposely designed to meet the requirements of medium and large bakeries.
Technical charateristcs:
- Fabricated steel structure.
- Spiral made of high resistance stainless steel.
- Bowl and central post of 18/10 stainless steel.
- Two-speed motor for the spiral, independent motor for the bowl.
- V-belt drive system for noiseless working and minimum maintenance operations.
- Removable bowl.
- 24-Volt control board.
- Reversal of the bowl rotation in slow speed.
- Supplied with two timers which allow the automatic switching from the slow to the high speed and the stop of the machine at the end of
Model | BSE300TT | BSE400TT | |
---|---|---|---|
Flour capacity | kg | 190 | 250 |
Dough capacity | kg | 300 | 400 |
Bowl internal diam. | cm | 110 | 120 |
Bowl capacity | l | 455 | 620 |
Speeds spiral | n° | 2 | 2 |
Speeds bowl | n° | 1 | 1 |
Dimensions | cm | 230×130×170 | 238×135×170 |
Weight | kg | 1720 | 1800 |
Power | kW | 16,5 | 20 |

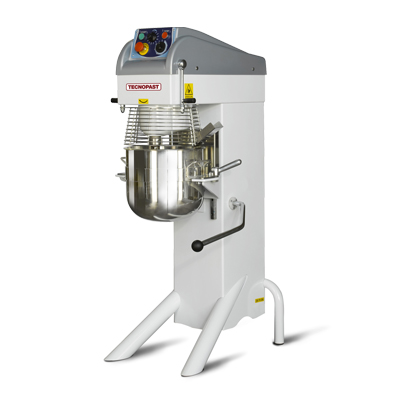

Mescolatore planetario
Serie PL20
Small planetary mixers with high production capacity. Table top model.
Purposely designed for bakeries, fast food, restaurants.
Technical charateristcs:
- Fabricated steel structure
- 18/10 stainless steel bowl and whisk
- Beater and hook made of high-resistant aluminium
- Timer
- Variable speed drive
- Manual bowl lifting
Model | PL 20B | PL 20 | |
---|---|---|---|
Bowl capacity | l | 20 | 40 |
Dimensions | cm | 72×47×98 | 72×47×133 |
Weight | kg | 100 | 117 |
Power | kW | 1,1 | 1,1 |
Planetary mixer
Serie PL40 - PL60
The planetary mixers PL60 and PL40 are versatile machines suitable for any pastry and bakery product.
Technical charateristcs:
- Fabricated steel structure
- 18/10 stainless steel bowl and whisk
- Beater and hook made of high-resistant aluminium
- Timer
- Manual bowl lifting
Model | PL 40 | PL 60 | |
---|---|---|---|
Bowl capacity | l | 40 | 60 |
Dimensions | cm | 98×73×148 | 103×76×155 |
Weight | kg | 218 | 242 |
Power | kW | 0,59/1,1/1,5 | 0,9/1,8/2,2 |

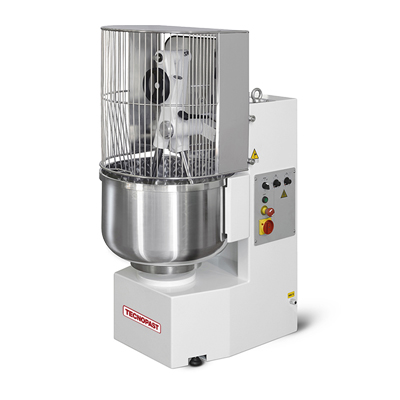

Twin-arm mixer with fixed bowl
Serie T
Heavy duty mixer purposely designed for bakeries, pastry-shops and small confectionery industries, for a perfect oxygenation and low heating of the dough.
Technical charateristcs:
- Fabricated steel structure
- Arms made of high resistance stainless steel
- Special Stainless steel bowl and arms
- 24-Volt control board
- Arm automatic stop by lifting the safety guard
- Two speed motor (40-60 beats/min)
- One or two timers available upon request
Model | T-40 | T-50 | T-60 | |
---|---|---|---|---|
Dough capacity | kg | 40 | 50 | 60 |
Bowl capacity | l | 63 | 75 | 87 |
Bowl internal diam. | cm | 54 | 54 | 55 |
Speeds spiral | n° | 2 | 2 | 2 |
Speeds bowl | n° | 1 | 1 | 1 |
Dimensions | cm | 61×84×132 | 61×85×138 | 61×85×142 |
Weight | kg | 299 | 302 | 303 |
Power | kW | 1,5/2,2 | 1,5/2,2 | 1,5/2,2 |
Model | T-80 | T-100 | T-120 | T-160 | |
---|---|---|---|---|---|
Dough capacity | kg | 80 | 100 | 120 | 150 |
Bowl capacity | l | 140 | 160 | 175 | 230 |
Bowl internal diam. | cm | 68 | 68 | 72 | 83 |
Speeds spiral | n° | 2 | 2 | 2 | 2 |
Speeds bowl | n° | 1 | 1 | 1 | 1 |
Dimensions | cm | 75×103×165 | 75×103×169 | 93×110×184 | 93×110×191 |
Weight | kg | 489 | 490 | 736 | 745 |
Power | kW | 3,2/4,6 | 3,2/4,6 | 3,7/5,9 | 3,7/5,9 |
